Product Description

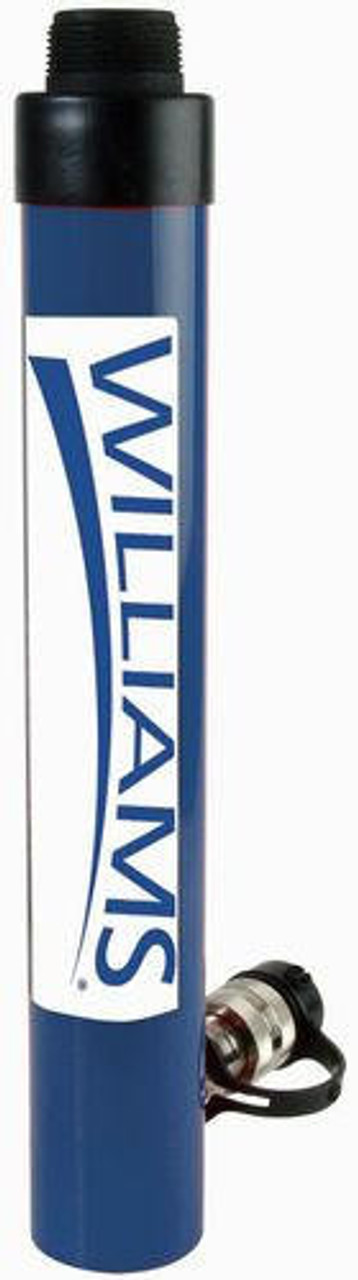

The 6CT10T10 10" Williams 10T Treaded Hole Single Acting Cylinder - 6CT10T10 comes with the Williams Industrial Brands Limited lifetime warranty.
10T 10" Treaded Hole S/A Cylinder
Features
- High quality threaded single acting cylinders
- Removable threaded plunger adapter allows for the use of a variety of threaded attachments
- Used to attach accessories to rod end and base
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin: Taiwan
- Cylinder Capacity (tons) : 10
- Stroke (in) : 5.96
- Cylinder Effective Area (in2) : 2.44
- Pressure at capacity (psi) : 8,930
- Oil Capacity (in3) : 22.31
- Collapsed Height A (in) : 15.47
- Extended Height B (in) : 25.43
- Outside Dia. D (in) : 2.26
- Plunger Dia. E (in) : 1.49
- Base to Inlet Port G (in) : 1.67
- Collar Thread Length L (in) : 1.13
- Saddle Height S (in) : 0.94
