Product Description

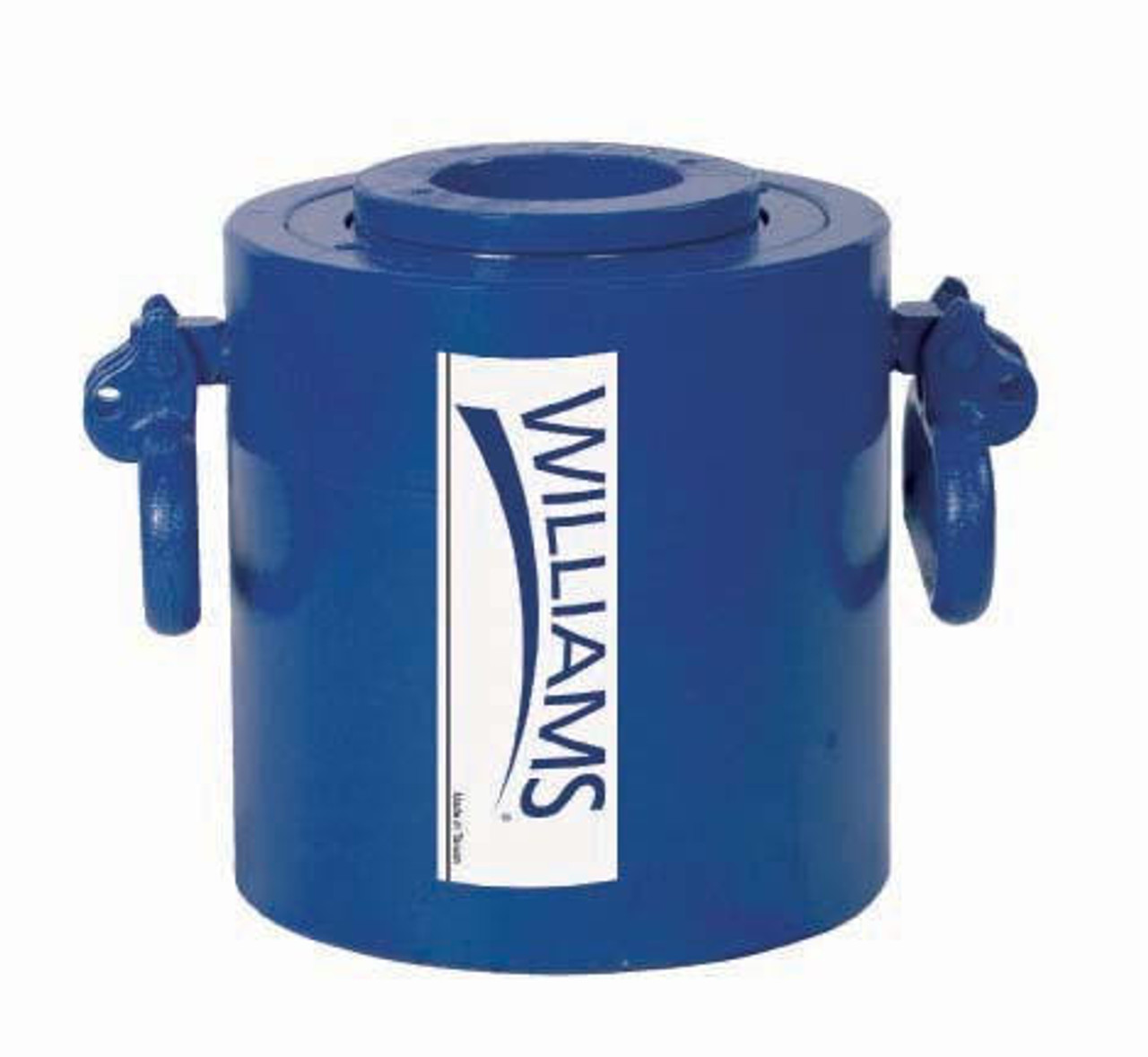

The 6CH30T02 2.5" Stroke Williams 30T Single Acting Cylinders - 6CH30T02 comes with the Williams Industrial Brands Limited lifetime warranty.
30T Hollow Hole Cylinder 2.5" Stroke
Features
- 6 standard models
- Ideal for some pulling and pushing applications
- Heavy duty compression spring
- Dual wipers help prevent contamination
- Collar thread protector
- High flow coupler with dust cap
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 30
- Stroke (in) : 2.52
- Cylinder Effective Area (in2) : 6.32
- Pressure at Capacity (psi) : 9,488
- Oil Capacity (in3) : 15.93
- Min. Height A (in) : 7.05
- Max. Height B (in) : 9.57
- O.D. D (in) : 4.50
- Plunger I.D. C (in) : 1.311
- Plunger O.D. E (in) : 2.48
- Plunger Internal Thread J (in) : 1 13/16"-16UN
- Internal Thread Length K (in) : 0.87
DIMENSION | ||||||
---|---|---|---|---|---|---|
Collar Thread Dia. H (in) | Collar Thread Lgth. L (in) | Base to Inlet Port G (in) | Base Mounting Hole Bolt Circle X (in) | Base Mounting Hole Thread Y (in) | Base Mounting Hole Thread Depth Z (in) | Weights (lbs) |
4 1/2 -12 | 1.75 | 0.81 | 3/8"-16UNC | 0.55 | 22.9 |
