Product Description
The 5HD2S500 Williams 2Sp Double act Hand Pump 476Ci - 5HD2S500 comes with the Williams Industrial Brands Limited lifetime warranty.

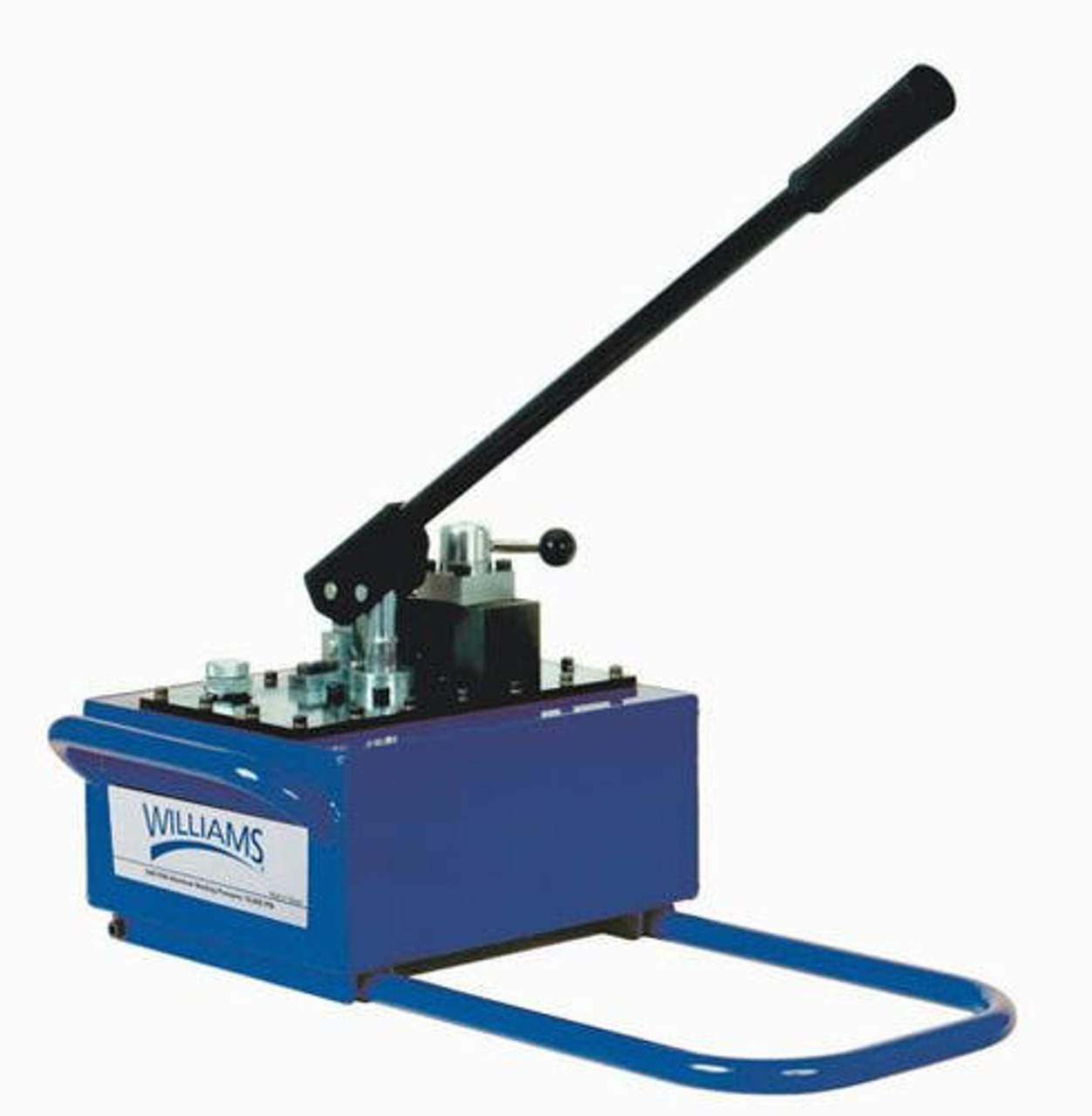

2Sp Double Action Hand Pump 476Ci
Features
- A 4-way control valve for operation of double acting cylinders
- Large oil capacities to power a wide range of cylinders and tools
- Two speed operation increases productivity and reduces user fatigue
- Country of Origin : Taiwan
- Used with Cylinder : Double Acting
- Pump Type : Two Speed
- Usable Oil Capacity : 476.0
- Pressure Rating 1st Stage (psi) : 290
- Pressure Rating 2nd Stage (psi) : 10,000
- Oil Displacement per Stroke 1st Stage (in3) : 7.31
- Oil Displacement per Stroke 2nd Stage (in3) : 0.29
- Max. OperatingF orce (lbs) : 143
- Piston Stroke (in) : 1.67
- Oil Outlet Port : 3.8"-18NPTF
- Weight (lbs) : 77.4
- Dimensions (in) : 25.79 x 11.61 x 30.35 x 11.54 x 24.17 x 8.25 x 26.94 x 15.24 x 11.18
